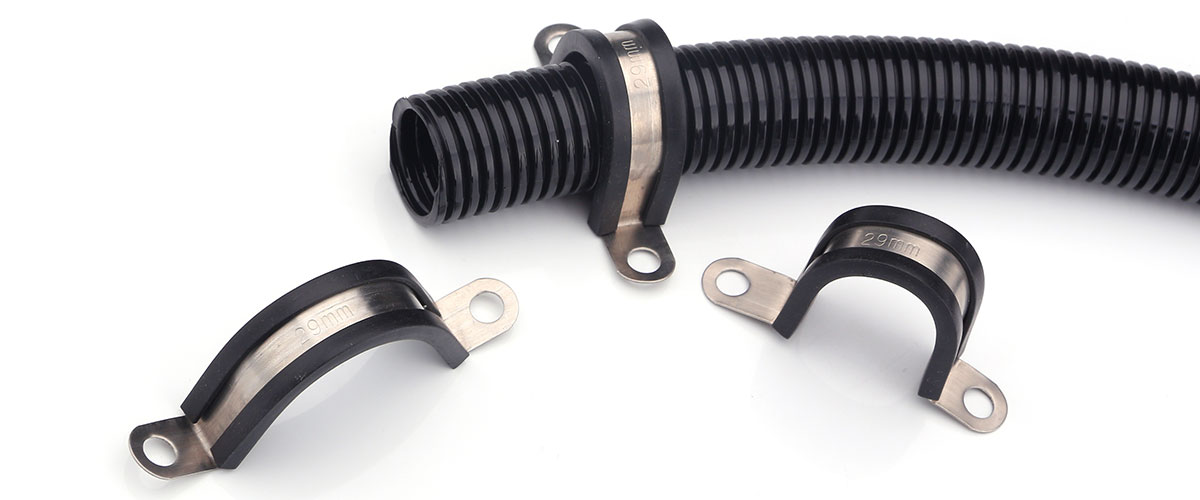

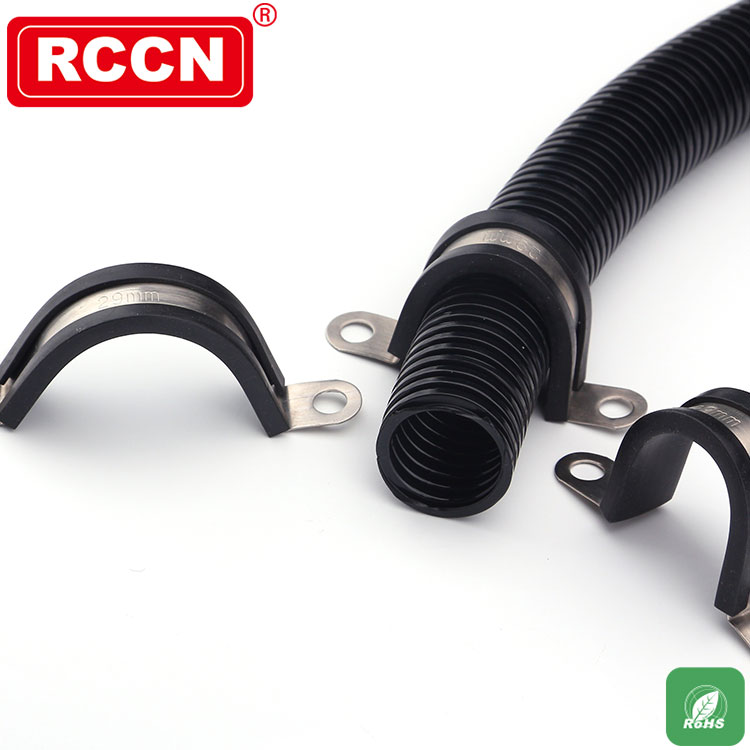

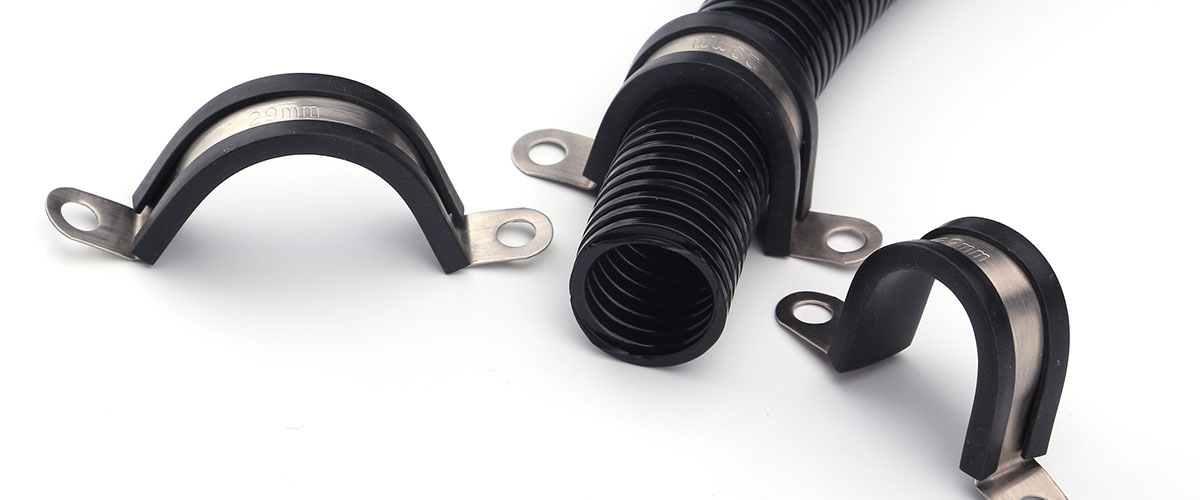

半圓不銹鋼緊固夾 SKU

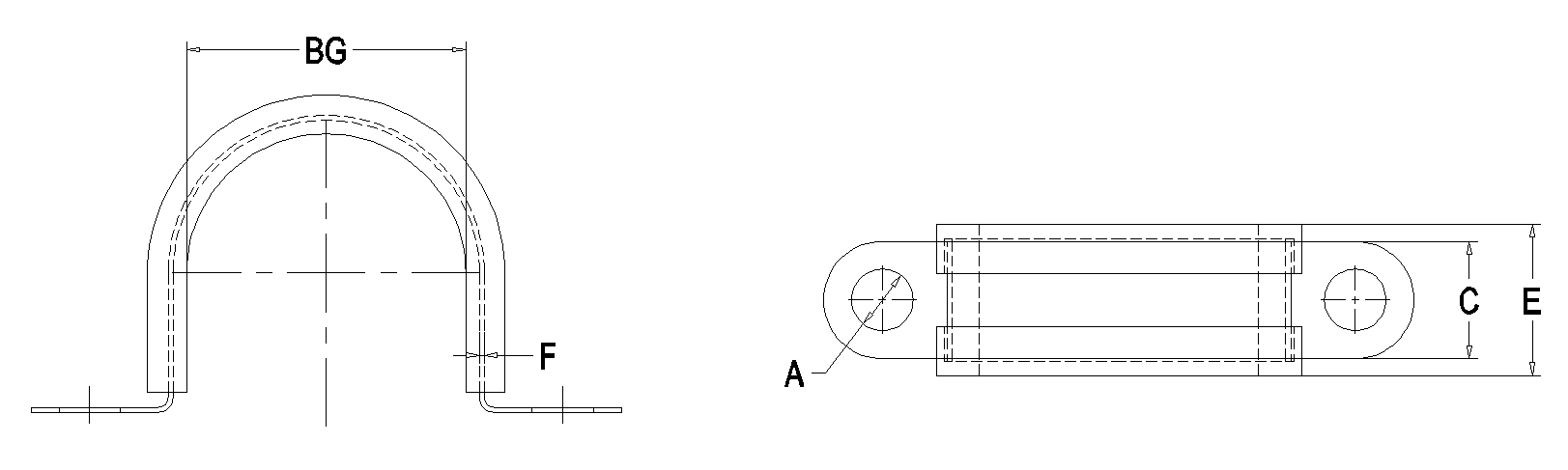

型號.	對應軟管 BG/外徑	螺絲孔 A	橡膠外徑 E	金屬寬度 C	厚度 F	包裝 PCS
SKU/M4
SKU BG-07(M4)/304	BG-07/10mm	M4	14	9	0.5	50PCS
SKU BG-10(M4)/304	BG-10/13mm	M4	14	9	0.5
SKU BG-12(M4)/304	BG-12/15.8mm	M4	14	9	0.5
SKU BG-15(M4)/304	BG-15/18.5mm	M4	14	9	0.5
SKU BG-17(M4)/304	BG-17/21.2mm	M4	14	9	0.5
SKU BG-20(M4)/304	BG-20/25mm	M4	14	9	0.5	25PCS
SKU BG-23(M4)/304	BG-23/28.5mm	M4	14	9	0.5
SKU BG-25(M4)/304	BG-25/30.0mm	M4	14	9	0.5
SKU BG-29(M4)/304	BG-29/34.5mm	M4	14	9	0.5
SKU BG-36(M4)/304	BG-36/42.5mm	M4	14	9	0.5
SKU BG-48(M4)/304	BG-48/54.5mm	M4	14	9	0.5
SKU/M6
SKU BG-07(M6)/304	BG-07/10mm	M6	15	12	0.5	50PCS
SKU BG-10(M6)/304	BG-10/13mm	M6	15	12	0.5
SKU BG-12(M6)/304	BG-12/15.8mm	M6	15	12	0.5
SKU BG-15(M6)/304	BG-15/18.5mm	M6	15	12	0.5
SKU BG-17(M6)/304	BG-17/21.2mm	M6	15	12	0.5
SKU BG-20(M6)/304	BG-20/25.0mm	M6	15	12	0.5	25PCS
SKU BG-23(M6)/304	BG-23/28.5mm	M6	15	12	0.5
SKU BG-25(M6)/304	BG-25/30.0mm	M6	15	12	0.5
SKU BG-29(M6)/304	BG-29/34.5mm	M6	15	12	0.5
SKU BG-36(M6)/304	BG-36/42.5mm	M6	15	12	0.5
SKU BG-48(M6)/304	BG-48/54.5mm	M6	15	12	0.5
SKU/M6D
SKU BG-07(M6D)/304	BG-07/10mm	M6	24.5	20	1.0	50PCS
SKU BG-10(M6D)/304	BG-10/13mm	M6	24.5	20	1.0
SKU BG-12(M6D)/304	BG-12/15.8mm	M6	24.5	20	1.0
SKU BG-15(M6D)/304	BG-15/18.5mm	M6	24.5	20	1.0
SKU BG-17(M6D)/304	BG-17/21.2mm	M6	24.5	20	1.0
SKU BG-20(M6D)/304	BG-20/25.0mm	M6	24.5	20	1.0	25PCS
SKU BG-23(M6D)/304	BG-23/28.5mm	M6	24.5	20	1.0
SKU BG-25(M6D)/304	BG-25/30.0mm	M6	24.5	20	1.0
SKU BG-29(M6D)/304	BG-29/34.5mm	M6	24.5	20	1.0
SKU BG-36(M6D)/304	BG-36/42.5mm	M6	24.5	20	1.0
SKU BG-48(M6D)/304	BG-48/54.5mm	M6	24.5	20	1.0
SKU/M8
SKU BG-07(M8)/304	BG-07/10mm	M8	24.5	20	1.0	50PCS
SKU BG-10(M8)/304	BG-10/13mm	M8	24.5	20	1.0
SKU BG-12(M8)/304	BG-12/15.8mm	M8	24.5	20	1.0
SKU BG-15(M8)/304	BG-15/18.5mm	M8	24.5	20	1.0
SKU BG-17(M8)/304	BG-17/21.2mm	M8	24.5	20	1.0
SKU BG-20(M8)/304	BG-20/25.0mm	M8	24.5	20	1.0	25PCS
SKU BG-23(M8)/304	BG-23/28.5mm	M8	24.5	20	1.0
SKU BG-25(M8)/304	BG-25/30.0mm	M8	24.5	20	1.0
SKU BG-29(M8)/304	BG-29/34.5mm	M8	24.5	20	1.0
SKU BG-36(M8)/304	BG-36/42.5mm	M8	24.5	20	1.0
SKU BG-48(M8)/304	BG-48/54..5mm	M8	24.5	20	1.0
SKU/M10
SKU BG-07(M10)/304	BG-07/10mm	M10	30	25	1.0	50PCS
SKU BG-10(M10)/304	BG-10/13mm	M10	30	25	1.0
SKU BG-12(M10)/304	BG-12/15.8mm	M10	30	25	1.0
SKU BG-15(M10)/304	BG-15/18.5mm	M10	30	25	1.0
SKU BG-17(M10)/304	BG-17/21.2mm	M10	30	25	1.0
SKU BG-20(M10)/304	BG-20/25.0mm	M10	30	25	1.0	25PCS
SKU BG-23(M10)/304	BG-23/28.5mm	M10	30	25	1.0
SKU BG-25(M10)/304	BG-25/30.0mm	M10	30	25	1.0
SKU BG-29(M10)/304	BG-29/34.5mm	M10	30	25	1.0
SKU BG-36(M10)/304	BG-36/42.5mm	M10	30	25	1.0
SKU BG-48(M10)/304	BG-48/54.5mm	M10	30	25	1.0
SKU BG-70(M10)/304	BG-67/70.0mm	M10	30	25	1.0	5PCS

型號.	對應軟管 BG/外徑	螺絲孔 A	橡膠外徑	金屬寬度 C	厚度 F	包裝 PCS
SKU/M4
SKU BG-07(M4)/316L	BG-07/10mm	M4	14	9	0.5	50PCS
SKU BG-10(M4)/316L	BG-10/13mm	M4	14	9	0.5
SKU BG-12(M4)/316L	BG-12/15.8mm	M4	14	9	0.5
SKU BG-15(M4)/316L	BG-15/18.5mm	M4	14	9	0.5
SKU BG-17(M4)/316L	BG-17/21.2mm	M4	14	9	0.5
SKU BG-20(M4)/316L	BG-20/25mm	M4	14	9	0.5	25PCS
SKU BG-23(M4)/316L	BG-23/28.5mm	M4	14	9	0.5
SKU BG-25(M4)/316L	BG-25/30.0mm	M4	14	9	0.5
SKU BG-29(M4)/316L	BG-29/34.5mm	M4	14	9	0.5
SKU BG-36(M4)/316L	BG-36/42.5mm	M4	14	9	0.5
SKU BG-48(M4)/316L	BG-48/54.5mm	M4	14	9	0.5
SKU/M6
SKU BG-07(M6)/316L	BG-07/10mm	M6	15	12	0.5	50PCS
SKU BG-10(M6)/316L	BG-10/13mm	M6	15	12	0.5
SKU BG-12(M6)/316L	BG-12/15.8mm	M6	15	12	0.5
SKU BG-15(M6)/316L	BG-15/18.5mm	M6	15	12	0.5
SKU BG-17(M6)/316L	BG-17/21.2mm	M6	15	12	0.5
SKU BG-20(M6)/316L	BG-20/25.0mm	M6	15	12	0.5	25PCS
SKU BG-23(M6)/316L	BG-23/28.5mm	M6	15	12	0.5
SKU BG-25(M6)/316L	BG-25/30.0mm	M6	15	12	0.5
SKU BG-29(M6)/316L	BG-29/34.5mm	M6	15	12	0.5
SKU BG-36(M6)/316L	BG-36/42.5mm	M6	15	12	0.5
SKU BG-48(M6)/316L	BG-48/54.5mm	M6	15	12	0.5
SKU/M6D
SKU BG-07(M6D)/316L	BG-07/10mm	M6	24.5	20	1.0	50PCS
SKU BG-10(M6D)/316L	BG-10/13mm	M6	24.5	20	1.0
SKU BG-12(M6D)/316L	BG-12/15.8mm	M6	24.5	20	1.0
SKU BG-15(M6D)/316L	BG-15/18.5mm	M6	24.5	20	1.0
SKU BG-17(M6D)/316L	BG-17/21.2mm	M6	24.5	20	1.0
SKU BG-20(M6D)/316L	BG-20/25.0mm	M6	24.5	20	1.0	25PCS
SKU BG-23(M6D)/316L	BG-23/28.5mm	M6	24.5	20	1.0
SKU BG-25(M6D)/316L	BG-25/30.0mm	M6	24.5	20	1.0
SKU BG-29(M6D)/316L	BG-29/34.5mm	M6	24.5	20	1.0
SKU BG-36(M6D)/316L	BG-36/42.5mm	M6	24.5	20	1.0
SKU BG-48(M6D)/316L	BG-48/54.5mm	M6	24.5	20	1.0
SKU/M8
SKU BG-07(M8)/316L	BG-07/10mm	M8	24.5	20	1.0	50PCS
SKU BG-10(M8)/316L	BG-10/13mm	M8	24.5	20	1.0
SKU BG-12(M8)/316L	BG-12/15.8mm	M8	24.5	20	1.0
SKU BG-15(M8)/316L	BG-15/18.5mm	M8	24.5	20	1.0
SKU BG-17(M8)/316L	BG-17/21.2mm	M8	24.5	20	1.0
SKU BG-20(M8)/316L	BG-20/25.0mm	M8	24.5	20	1.0	25PCS
SKU BG-23(M8)/316L	BG-23/28.5mm	M8	24.5	20	1.0
SKU BG-25(M8)/316L	BG-25/30.0mm	M8	24.5	20	1.0
SKU BG-29(M8)/316L	BG-29/34.5mm	M8	24.5	20	1.0
SKU BG-36(M8)/316L	BG-36/42.5mm	M8	24.5	20	1.0
SKU BG-48(M8)/316L	BG-48/54..5mm	M8	24.5	20	1.0
SKU/M10
SKU BG-07(M10)/316L	BG-07/10mm	M10	30	25	1.0	50PCS
SKU BG-10(M10)/316L	BG-10/13mm	M10	30	25	1.0
SKU BG-12(M10)/316L	BG-12/15.8mm	M10	30	25	1.0
SKU BG-15(M10)/316L	BG-15/18.5mm	M10	30	25	1.0
SKU BG-17(M10)/316L	BG-17/21.2mm	M10	30	25	1.0
SKU BG-20(M10)/316L	BG-20/25.0mm	M10	30	25	1.0	25PCS
SKU BG-23(M10)/316L	BG-23/28.5mm	M10	30	25	1.0
SKU BG-25(M10)/316L	BG-25/30.0mm	M10	30	25	1.0
SKU BG-29(M10)/316L	BG-29/34.5mm	M10	30	25	1.0
SKU BG-36(M10)/316L	BG-36/42.5mm	M10	30	25	1.0
SKU BG-48(M10)/316L	BG-48/54.5mm	M10	30	25	1.0
SKU BG-70(M10)/316L	BG-67/70.0mm	M10	30	25	1.0	5PCS
