管形裸端子 EN

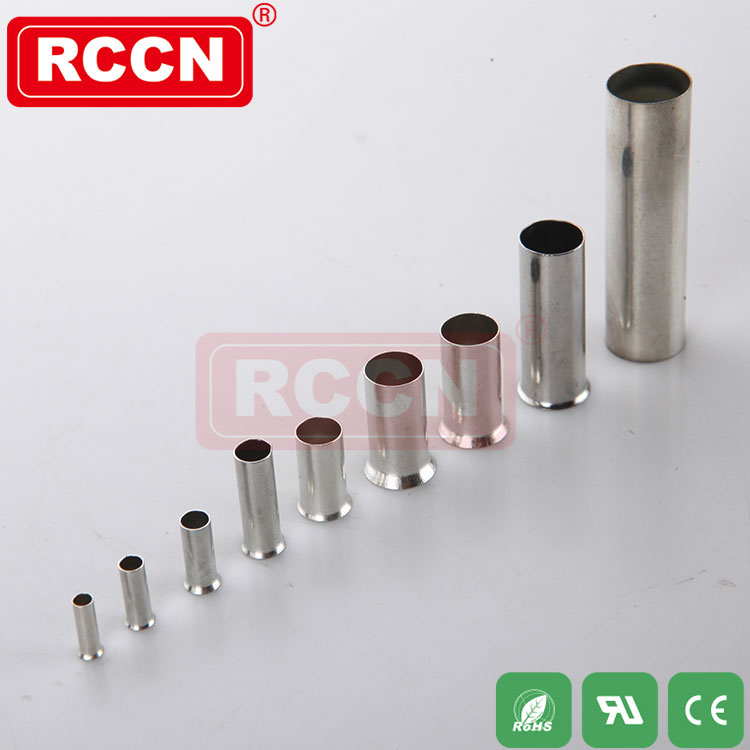

RCCN 管形裸端子 EN

產品材質:接線端子採用優質紫銅製成,導電性良好,外套採用優質ROHS-PVC制,耐久性不易老化.
產品特點:採用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊後不斷裂鬆開,-40度耐熱至85度正常使用.
使用方法:將電線剝開外皮,穿入端子後銅管

接線端子,冷壓端子,銅管端子,冷壓接線端子標準

型號	尺寸				導線截面
	L	D	C	W	A.W.G	mm2
	mm	mm	mm	mm	A.W.G	mm2
EN0.5-6	6.0	1.3	1.0	1.7	#22	0.5
EN0.5-8	8.0	1.3	1.0	1.7	#22	0.5
EN0.5-10	10.0	1.3	1.0	1.7	#22	0.5
EN0.5-12	12.0	1.3	1.0	1.7	#22	0.5
EN0.75-6	6.0	1.5	1.2	1.9	#20	0.75
EN0.75-8	8.0	1.5	1.2	1.9	#20	0.75
EN0.75-10	10.0	1.5	1.2	1.9	#20	0.75
EN0.75-12	12.0	1.5	1.2	1.9	#20	0.75
EN1.0-6	6.0	1.7	1.4	2.2	#18	1.0
EN1.0-8	8.0	1.7	1.4	2.2	#18	1.0
EN1.0-10	10.0	1.7	1.4	2.2	#18	1.0
EN1.0-12	12.0	1.7	1.4	2.2	#18	1.0
EN1.5-8	8.0	2.0	1.7	2.5	#16	1.5
EN1.5-10	10.0	2.0	1.7	2.5	#16	1.5
EN1.5-12	12.0	2.0	1.7	2.5	#16	1.5
EN1.5-18	18.0	2.0	1.7	2.5	#16	1.5
EN2.5-8	8.0	2.5	2.2	3.3	#14	2.5
EN2.5-10	10.0	2.5	2.2	3.3	#14	2.5
EN2.5-12	12.0	2.5	2.2	3.3	#14	2.5
EN2.5-18	18.0	2.5	2.2	3.3	#14	2.5
EN4.0-9	9.0	3.2	2.8	3.9	#12	4.0
EN4.0-12	12.0	3.2	2.8	3.9	#12	4.0
EN4.0-18	18.0	3.2	2.8	3.9	#12	4.0
EN6.0-10	10.0	3.9	3.5	4.8	#10	6.0
EN6.0-12	12.0	3.9	3.5	4.8	#10	6.0
EN6.0-15	15.0	3.9	3.5	4.8	#10	6.0
EN6.0-18	18.0	3.9	3.5	4.8	#10	6.0
EN10-12	12.0	4.9	4.5	5.8	#7	10.0
EN10-15	15.0	4.9	4.5	5.8	#7	10.0
EN10-18	18.0	4.9	4.5	5.8	#7	10.0
EN16-12	12.0	6.2	5.8	7.2	#5	16.0
EN16-15	15.0	6.2	5.8	7.2	#5	16.0
EN16-18	18.0	6.2	5.8	7.2	#5	16.0
EN25-16	16.0	7.9	7.5	9.1	#4	25.0
EN25-22	22.0	7.9	7.5	9.1	#4	25.0
EN35-16	16.0	8.7	8.3	10.2	#2	35.0
EN35-25	25.0	8.7	8.3	10.2	#2	35.0
EN50-20	20.0	10.9	10.3	12.4	#1	50.0
EN50-25	25.0	10.9	10.3	12.4	#1	50.0
